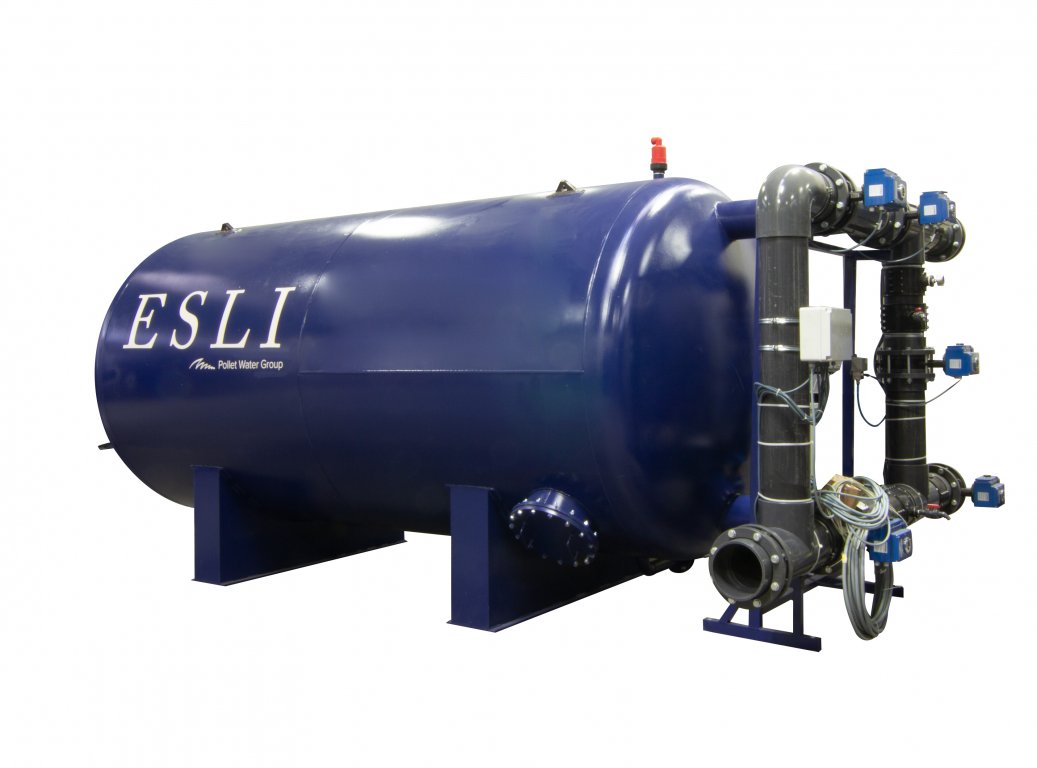

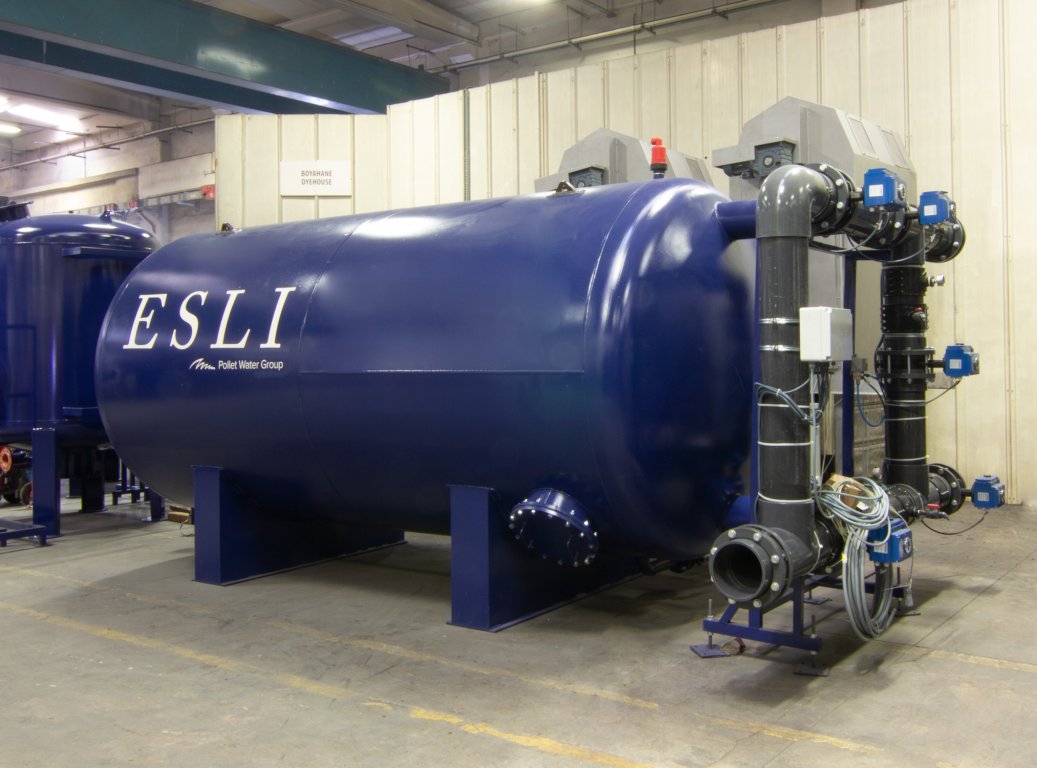

Yatık Çelik Tanklı Yüzey Borulamalı Kum Filtre Sistemleri

Category:

Description

Kum Filtreleri suyun içerdiği askıda katı maddeleri, bulanıklığı ve diğer partikülleri uzaklaştırmak amacı ile kullanılır.

TEKNİK ÖZELLİKLER

Epoksi boyalı karbon çelik tanklı
Maksimum çalışma basıncı 6 bar
Zaman kontrollü ters yıkama
Pnömatik aktüatörlü kelebek vanalar ve Elektrik Aktüatör kelebek vana seçenekleri
Ø 2000mm’den Ø3200mm ‘ye kadar alt toplama yapısı ayna üzeri mantar difüzör
PVC-U malzeme yüzey borulama veya ST37 malzeme Üzeri Galvaniz kaplı yüzey borulama seçenekleri
Sistem giriş çıkışlarında numune muslukları ve manometreler
PLC bazlı Siemens logo kontrol paneli (Opsiyonel dokunmatik ekran seçeneği)
Elektrik 220V /50 Hz / 1 pH
Pnömatik vanaların çalışması için gerekli kuru enstrüman havası temini müşteriye aittir. Önerilen kompresör kapasitesi minimum 100 Lt/dk @ 8 bar’dır.
Firmamız bünyesinde Basınçlı Ekipmanlar Standartlarına uygun ve sertifikalı Arıtma sistemleri için Metal Tanklar üretilebilmektedir.
· AD 2000 MERKBLATT
· ASME SEC.VIII
· EN 13445 (TÜV NORD SYSTEMS NOTIFIED BODY NUMBER 0045 onaylı)
